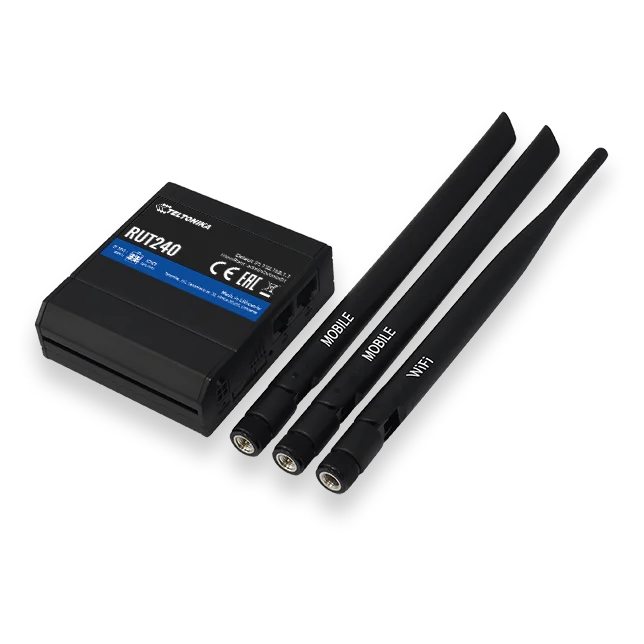

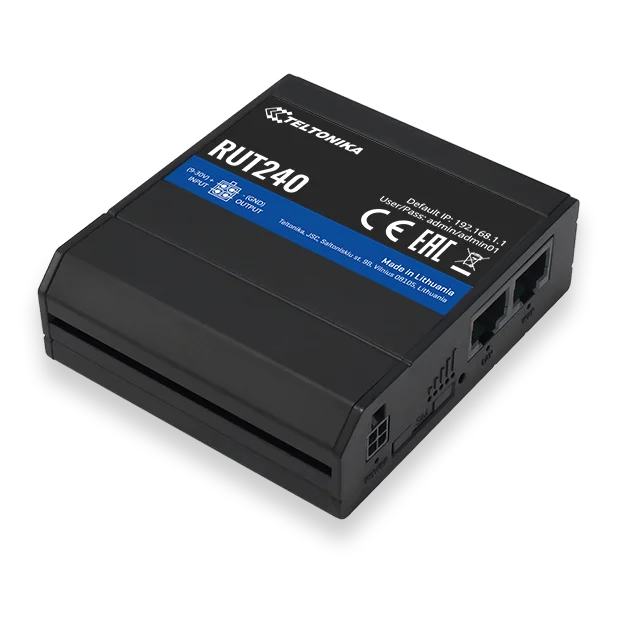

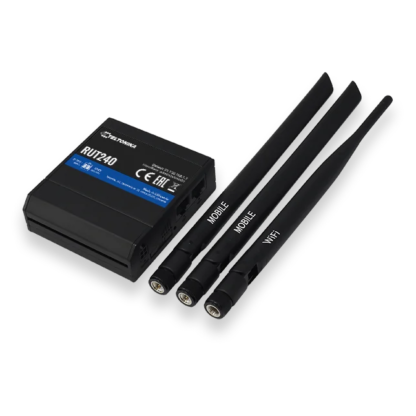

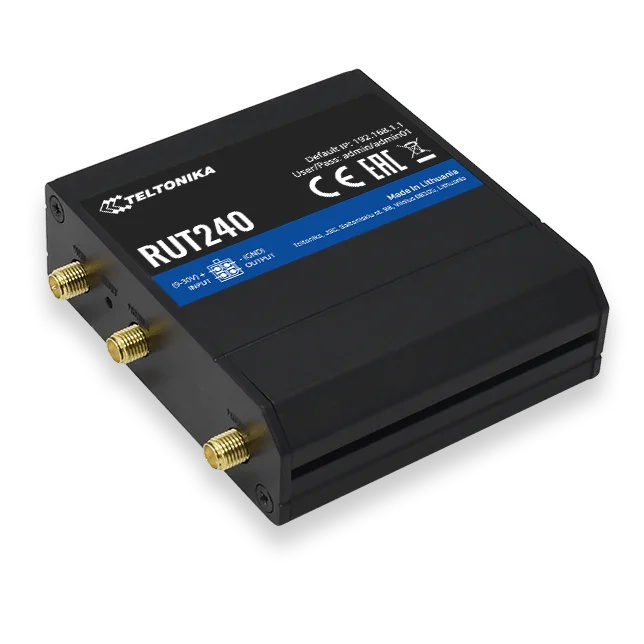

Teltonika RUT240 – LTE Router

Category:

Description

This compact, reliable LTE router is equipped with 2 Ethernet ports. The router also features a WiFi Access Point with Hotspot functionality and Digital I/O for remote monitoring and control.

This device provides secure and stable Internet connectivity for industrial applications, using RutOS software and security features, such as OpenVPN, IPsec, Firewall, Hotspot, SMS control and RMS support.

Additional information

Cellular Standard

4G LTE

Frequency Range

FDD-LTE: B2 (1900 MHz)/B4 (1700 MHz)/B12 (700 MHz), 3G (WCDMA): B2 (1900 MHz)/B4 (1700 MHz)/B5 (850 MHz)

RF Connector

2x Mobile SMA, 1x WiFi RP-SMA

Data Interfaces

2x 10/100 Ethernet ports

Digital Input

1x Digital Input

Digital Output

1x Digital Open Collector Output on power connector

Operating Voltage

+ 9 to + 30 Vdc

Operating Temperature Range

-40 to +75 Celsius

Dimensions (LxWxH)

83x74x25 mm

Weight

125 g

RUT240 *1**** North America (AT&T, Bell, T-Mobile)1
  • 4G (LTE-FDD): B2, B4, B12
  • 3G: B2, B4, B5
RUT240 *2**** North America (Verizon)
  • 4G (LTE-FDD): B4, B13

International variants are also available for use in Europe, the Middle East, Africa, Korea, Thailand, India, Australia, South America, New Zealand, Taiwan, and Japan.

Datasheet-RUT240-v1.2
