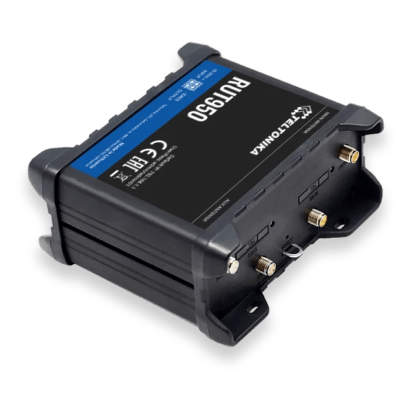

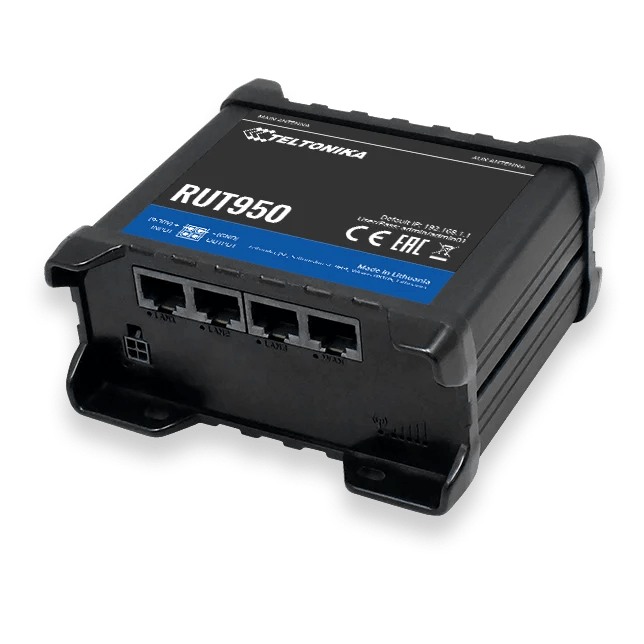

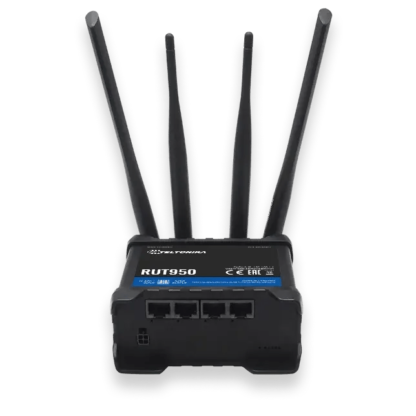

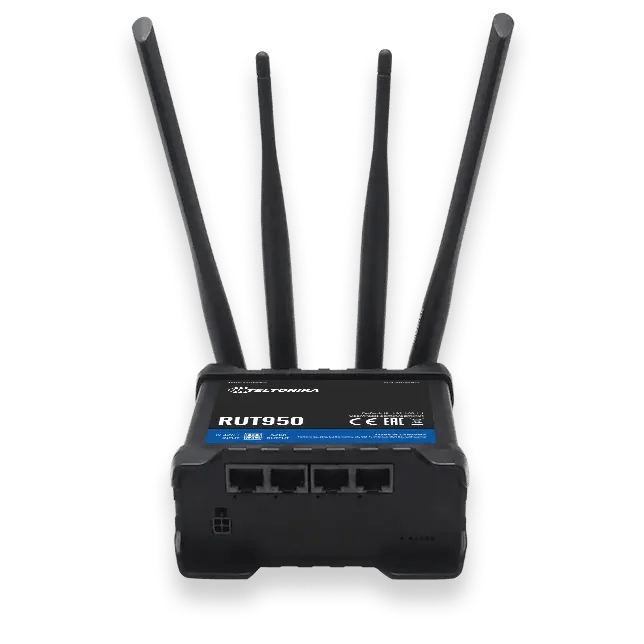

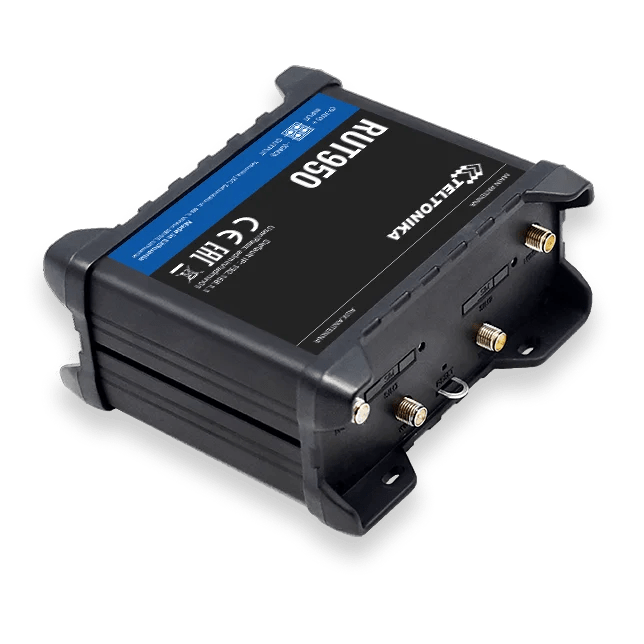

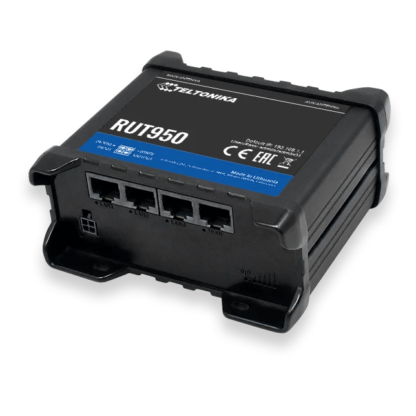

Teltonika RUT950 – LTE Dual-SIM Router

Description

This fully-featured, affordable LTE router includes 4x Ethernet ports as well as WiFi 4 (802.11b/g/n). Dual SIM support allows for fail-over between multiple carriers for maximum uptime and reliability.

OpenVPN, IPSec (IKEv1 and IKEv2), GRE, PP2P, and L2TP are available for secure VPN tunnels. SNMP, MQTT and Modbus are available for monitoring. Numerous networking features, including firewalls, routing, VLANs and more are also available.

North American models are available supporting LTE bands 2/4/12, which is ideal for use on AT&T and T-mobile in the US, including rural areas. Fallback to 3G (B2/4/5) is also available. A Verizon model is also available supporting LTE bands 4 and 13.

Additional information

Cellular Standard	3G/4G LTE
Frequency Range	ATT/T-Mobile 4G LTE: B2 (1900MHz) , B4 (1700MHz), B12 (700 MHz) 3G: B2 (1900 MHz), B4 (1700 MHz), B5 (850 MHz), Verizon 4G LTE: Band 4 (1700 MHz), Band 13 (700MHz)
RF Connector	2 x SMA for LTE, 2 x RP-SMA for WiFi
WiFI	IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Data Interfaces	Ethernet: 10/100 Mbps, 4x Ports
Digital Inputs	1x Digital In
Digital Outputs	1x 30V, 300ma Digital Output (open collector)
Operating Voltage	+ 9 to + 30 Vdc
Operating Temperature Range	-40 to +75C
Dimensions (LxWxH)	50 mm x 100 mm x 110 mm (H x W x D)
Weight	280g

RUT950 J*****

North America (AT&T, Bell, T-Mobile)

4G (LTE-FDD): B2 (1900MHz) , B4 (1700MHz), B12 (700 MHz)

3G: B2 (1900 MHz), B4 (1700 MHz), B5 (850 MHz)

RUT950 K*****

North America (Verizon)

4G (LTE-FDD): B4 (1700 MHz), B13 (700 MHz)

International variants are available for use in Europe, the Middle East, Africa, Korea, Thailand, India, Australia, South America, New Zealand, Taiwan, and Japan.

RUT950 Datasheet v1.4
