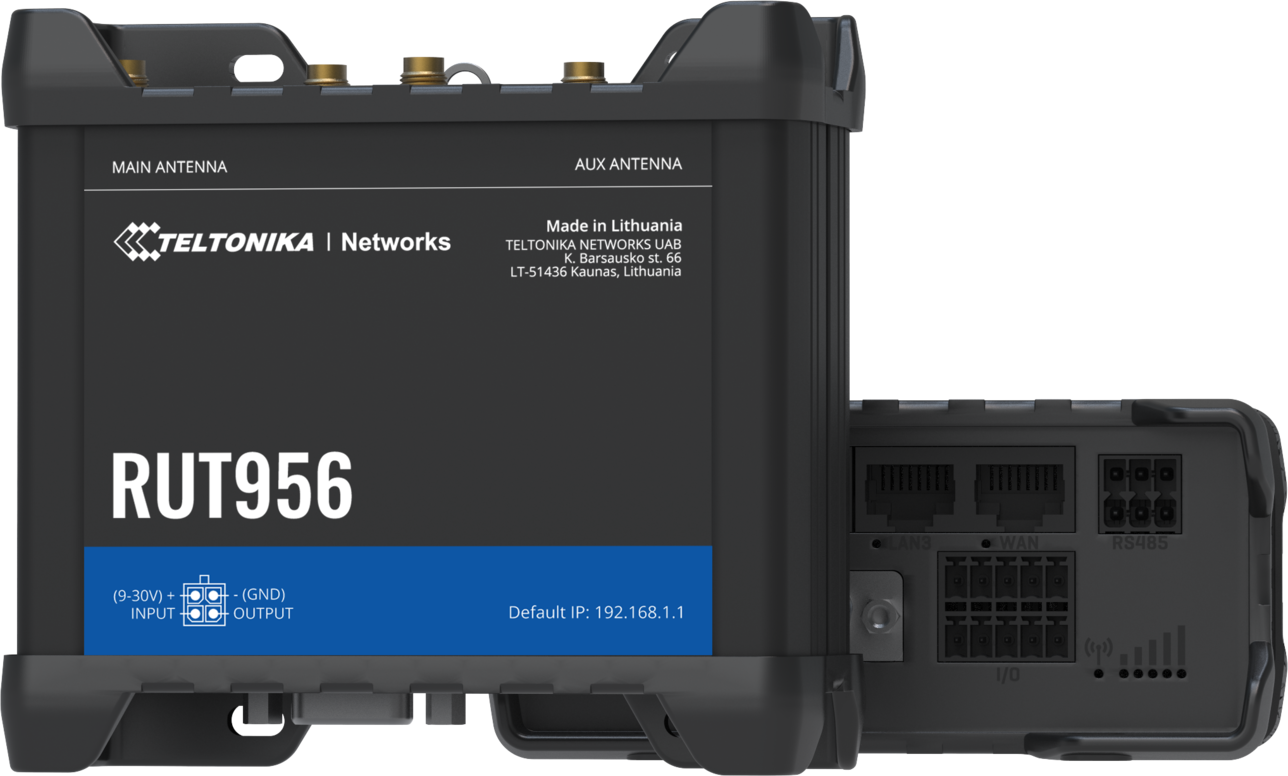

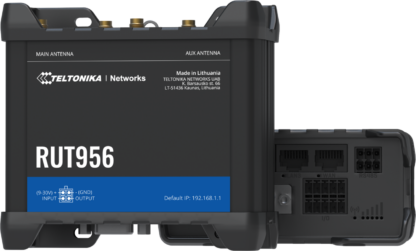

Teltonika RUT956 – LTE Dual-SIM Router

SKU: RUT956-A Categories: ,

Description

This fully-featured, affordable LTE router includes 4x Ethernet ports, RS232, RS485, and IO support (Digital & Analog). GPS and WiFi (802.11b/g/n) is also included on all models at no additional cost. Dual SIM support allows for fail-over between multiple carriers for maximum uptime and reliability.

OpenVPN, IPSec (IKEv1 and IKEv2), GRE, PP2P, and L2TP are available for secure VPN tunnels. SNMP, MQTT and Modbus are available for monitoring. Numerous networking features, including firewalls, routing, VLANs and more are also available.

Contact us today for a quote.

Additional information

Cellular Standard

3G/4G LTE
Frequency Range

3G: B2, B4, B5, 4G (LTE-FDD): B2, B4, B5, B12, B13, B14, B66, B71
RF Connector

2x SMA (Cellular), 1x SMA (GNSS), 2x RP-SMA (WiFi)
WiFI

IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Data Interfaces

Ethernet: 10/100 Mbps, Serial RS232/485: Up to 115.2kbps
Digital Inputs

0 – 3 V digital input, 0 – 30 V digital galvanically isolated input, 0 – 24 V analog input
Analog Inputs

0-24V (can also be used in current mode for 4-20mA)
Digital Outputs

30V 250 mA digital open collector output, 40V 4A SPST relay output
Operating Voltage

+ 9 to + 30 Vdc
Operating Temperature Range

-40 to +75C
Dimensions (LxWxH)

50 mm x 100 mm x 110 mm (H x W x D)
Weight

287g
RUT956 A***** North America (AT&T, Verizon, T-Mobile)
  • 4G (LTE-FDD): B2, B4, B5, B12, B13, B14, B66, B71
  • 3G: B2, B4, B5

International variants are available for use in Europe, the Middle East, Africa, Korea, Thailand, India, Australia, South America, New Zealand, Taiwan, and Japan.

RUT956 Datasheet
