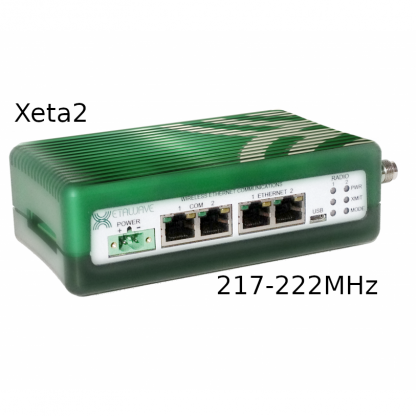

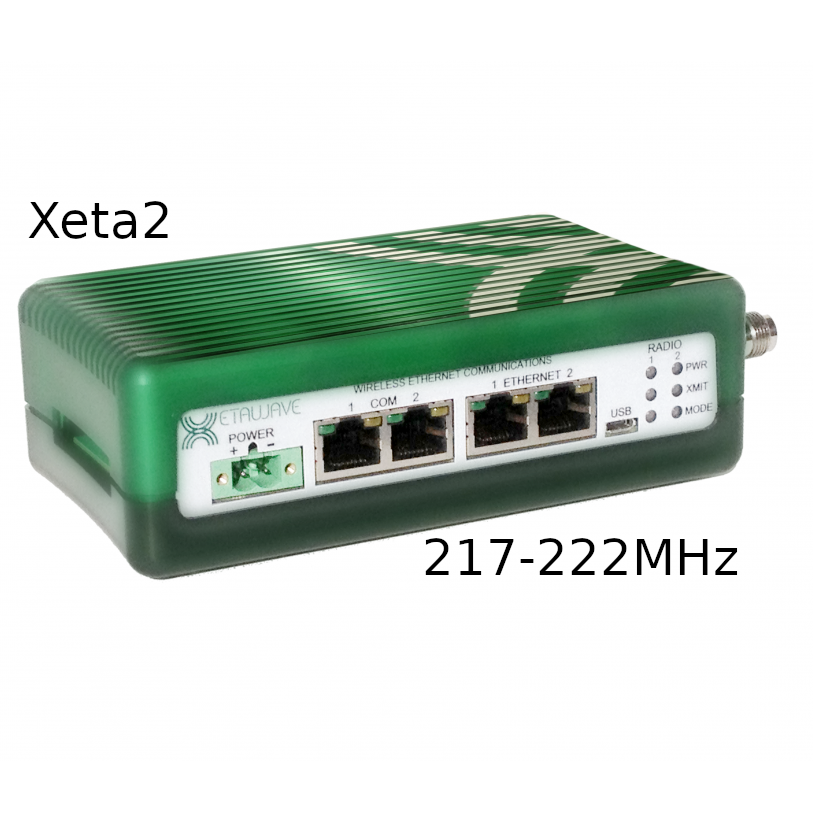

Xeta2 Series VHF Ethernet Radio

SKU: YX2000L, YX2002L, YX2000-SE Category:


The Xeta2 family of radios is capable of operating in the 217-222MHz licensed VHF band. Industry leading modulations up to 45kbps¹ 32QAM provide some of the highest data rates available on a narrowband (12.5kHz) channel. Larger channel sizes (15, 25, 50, 200 and 250kHz) are also available for maximum speeds on any type of license. Unique to XetaWave, master radios can use multiple modulation rates to create multipoint, multispeed networks where radio links vary in distance and signal strength, allowing for the maximum speed to each radio.

XetaWave enclosed radios offer 2 Ethernet ports as well as 2 Serial ports (requires included adapter, or inexpensive custom cable). Several variations are available, including the dual radio module Xeta2x2, which allows for seamless back-to-back repeaters, or dual independent radios. A version with backward compatibility with MDS 2710 (A/B mode) is also available.

XetaWave’s 2nd generation -EL platform is based on a Linux operating system, allowing for additional functionality compared to the first generation platform. VLANs, static routing, CSMA mesh mode, SNMP and integrated advanced diagnostic and testing tools are all built into the latest platform.

¹Quoted data rates are radio level modulation rates. User data throughputs vary with application and radio settings. Contact us for more information on available application level throughputs.

Additional information

Frequency Range

217-222 MHz

Output Power

2000mW limit Part 90 217-220MHz, 50-5000 mW


70+ mi (with line of sight)


MSK, QPSK, 8 PSK, 16 QAM, 32 QAM

RF Data Rate

10-45kbps (12.5 kHz), see datasheet for full list of channel sizes and RF bitrates

Channel Size

12.5/15/25/50/250 kHz

Frequency Stability


Duty Cycle


Output Impedance

50 Ohms


Up to up to -116 dBm, depending on modulation (see data sheet)

Error Detection

Up to 32-bit CRC, retransmit on error


AES 128/256

Data Interfaces

2x 10/100 Ethernet, 2x RS232/422/485 Serial

Data Connector

4x RJ45 (adapters available for serial connections)

Serial Interface Speed

Up to 230.4 kbps

Operating Voltage

12-32 VDC with reverse polarity protection to 32 VDC

Transmit Current

1100mA @ 12V for 1W RF

RF Connector

TNC female

Dimensions (LxWxH)

Enclosed: 6.625" x 3.45" x 1.835"


1.54 lbs (0.70 kg)



  • Single RF Module
  • Enclosed Ethernet (2 ports) and Serial (2 ports)

Xeta2x2-EL (MPN: XETA2X2-22MMLFB)

  • Dual RF Modules: Back-to-back repeaters, multi-network support
  • Enclosed Ethernet (2 ports) and Serial (2 ports)


  • Single serial port (RS232/422/485)
  • Compatibility with MDS 2710 (A/B) mode, as well as XetaWave radios

Multi-Band Radios

  • Dual RF Modules, different frequency bands
  • Xeta1 radio can be combined with any other XetaWave radio (1, 4, 7, 9, 24)
  • Enclosed Ethernet (2 ports) and Serial (2 ports)

Xeta2 Datasheet

For the latest firmware, user guide, or other documentation, please contact us.
