Description

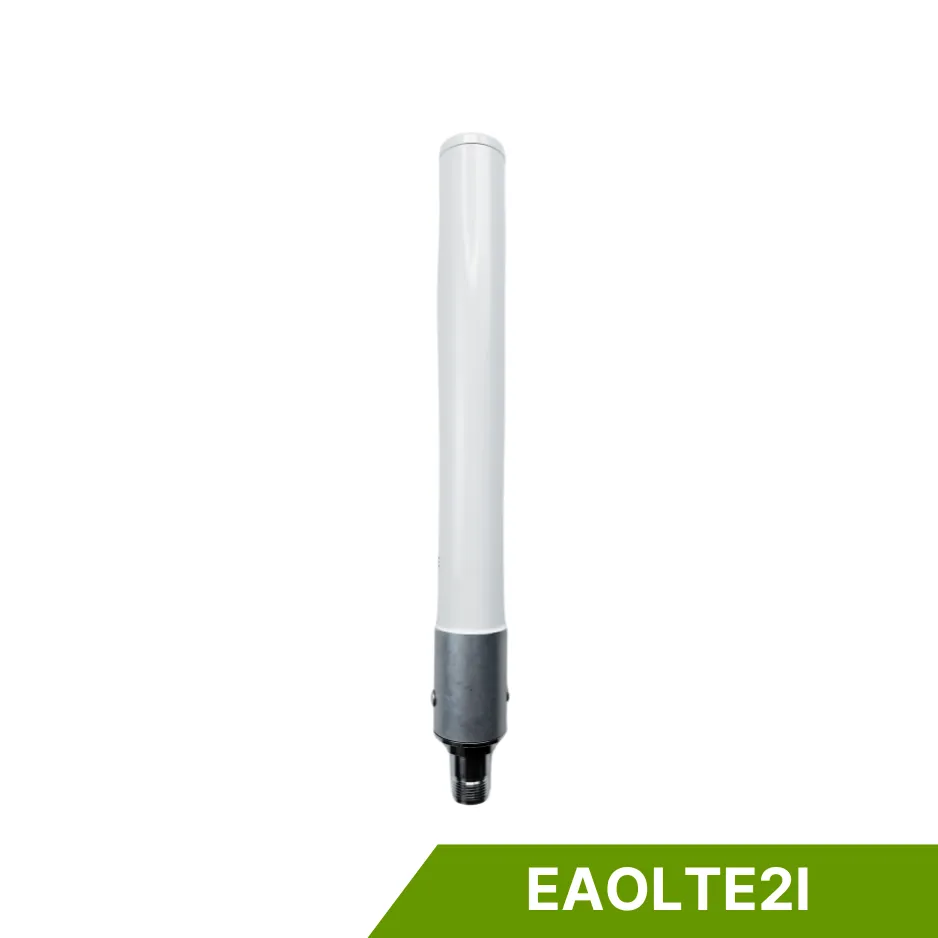

The EAOLTE2I is a rugged cellular omnidirectional antenna designed for reliable indoor and outdoor performance across multiple frequency bands. Covering 698–960 MHz and 1710–2690 MHz, it supports 2G/3G/4G and most 5G frequencies.
Technical Specifications
- Frequency Ranges:
- 698–960 MHz
- 1710–1990 MHz
- 1920–2170 MHz
- 2100–2500 MHz
- 2500–2690 MHz
- Gain:
- 1.5 dBi (698–960 MHz)
- 3.5 dBi (1710–2690 MHz)
- VSWR:
- < 2.5:1 (698–960 MHz)
- < 2.0:1 (1710–2690 MHz)
- Efficiency:
- 76% (698–960 MHz)
- 87% (1710–2700 MHz)
- Polarization: Linear, vertical
- Impedance: 50 Ω
- Power Handling: 10 W
- Connector: N-female
- Mounting: Mast/pole mount, included hardware
- Material: UV-stable polycarbonate radome
- Color: White
- Operating Temperature: –30 °C to +70 °C
- Storage Temperature: –40 °C to +85 °C
- Dimensions: 248 × 24.5 mm (9.8″ × 1″)
- Weight: 156 g (0.4 lb)
- Compliance: RoHS
- Warranty: 1 year
