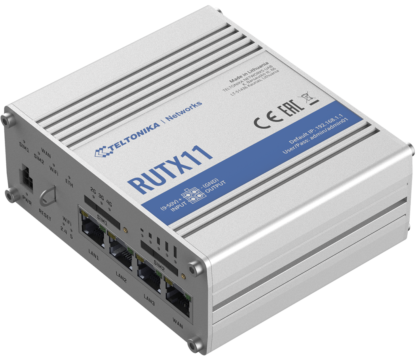

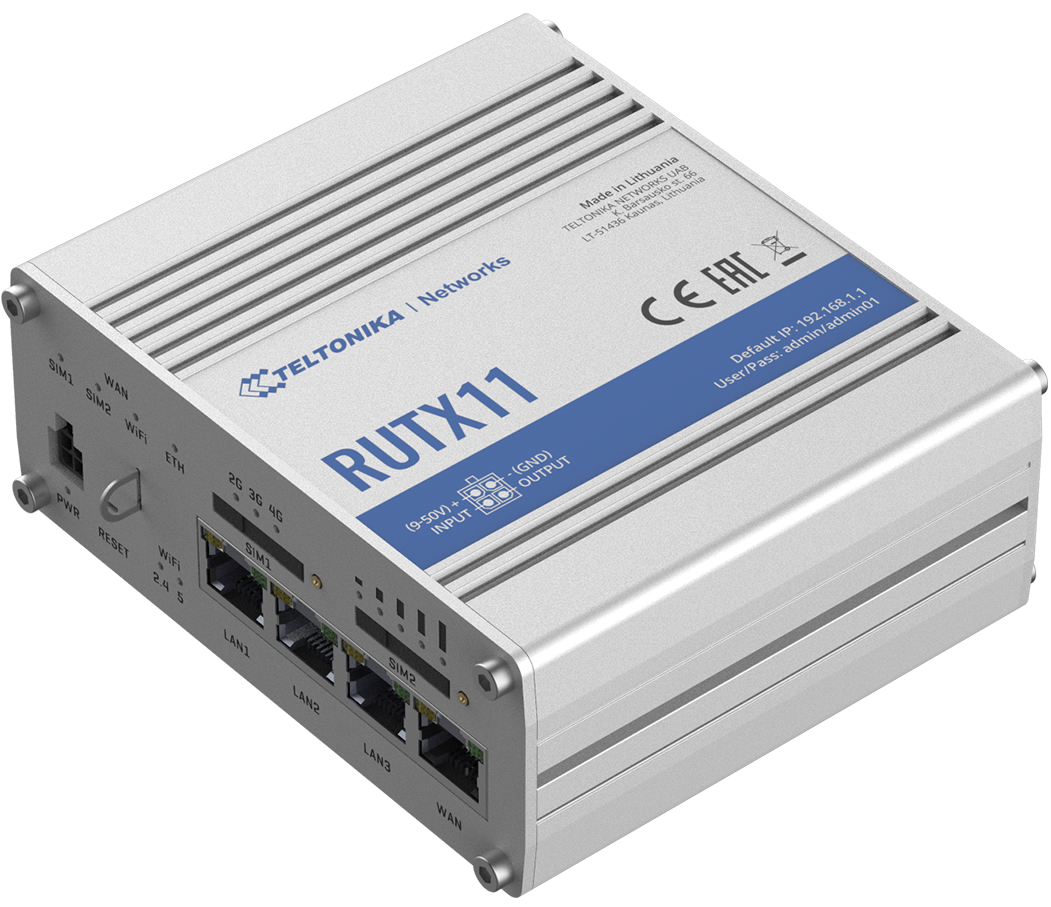

Teltonika RUTX11 – Advanced LTE Router

SKU: RUTX11 Category:

Description

Teltonika’s RUTX11 LTE router is an advanced solution with a high performance LTE Modem supporting all North American carriers. It includes 4x Ethernet ports, as well as GPS, WiFi 5 (802.11ac Wave 2), and Bluetooth. Dual SIM support allows for fail-over between multiple carriers for maximum uptime and reliability.

OpenVPN, Wireguard, IPSec (IKEv1 and IKEv2), GRE, PP2P, and L2TP are available for secure VPN tunnels, and the Quad Core ARM CPU allows for high performance compared to older or lower end cellular solutions. SNMP, MQTT and Modbus are available for network monitoring. Numerous networking features, including firewalls, routing, VLANs and more are also available as part of Teltonika’s RutOS (OpenWRT based Linux OS).

The North American model supports a wide variety of LTE bands, covering all three major carriers (ATT, Verizon, Tmobile). Fall back to 3G networks is also available.

  • 4G (LTE-FDD): B2, B4, B5, B7, B12, B13, B25, B26, B29 ,B30, B66
  • 3G: B2, B4, B5

Additional information

Cellular Standard

3G/4G LTE

Frequency Range

3G: B2, B4, B5, 4G (LTE-FDD): B2, B4, B5, B7, B12, B13, B25, B26, B29, B30, B66

RF Connector

2x SMA (Cellular), 1x SMA (GNSS), 2x RP-SMA (WiFi)

WiFI

802.11 b/g/n/ac (Wifi 5 Wave 2)

Data Interfaces

4x RJ45 Ethernet (10/100/1000 Mbps)

Digital Inputs

1x Digital Input (0 – 6 V detected as logic low, 8 – 30 V detected as logic high)

Digital Outputs

1x Digital Output (Open collector output, max output 30 V, 300 mA)

Operating Voltage

9 – 50 VDC

Operating Temperature Range

-40 to +75C

Dimensions (LxWxH)

115 x 44.2 x 95.1 mm

Weight

456g

RUTX11-1 (North America)

  • 4G (LTE-FDD): B2, B4, B5, B7, B12, B13, B25, B26, B29 ,B30, B66
  • 3G: B2, B4, B5

An additional variant for Europe, the Middle East, Africa, Australia, APAC, Brasil & Malaysia is also available by special order.

RUTX11 Datasheet
