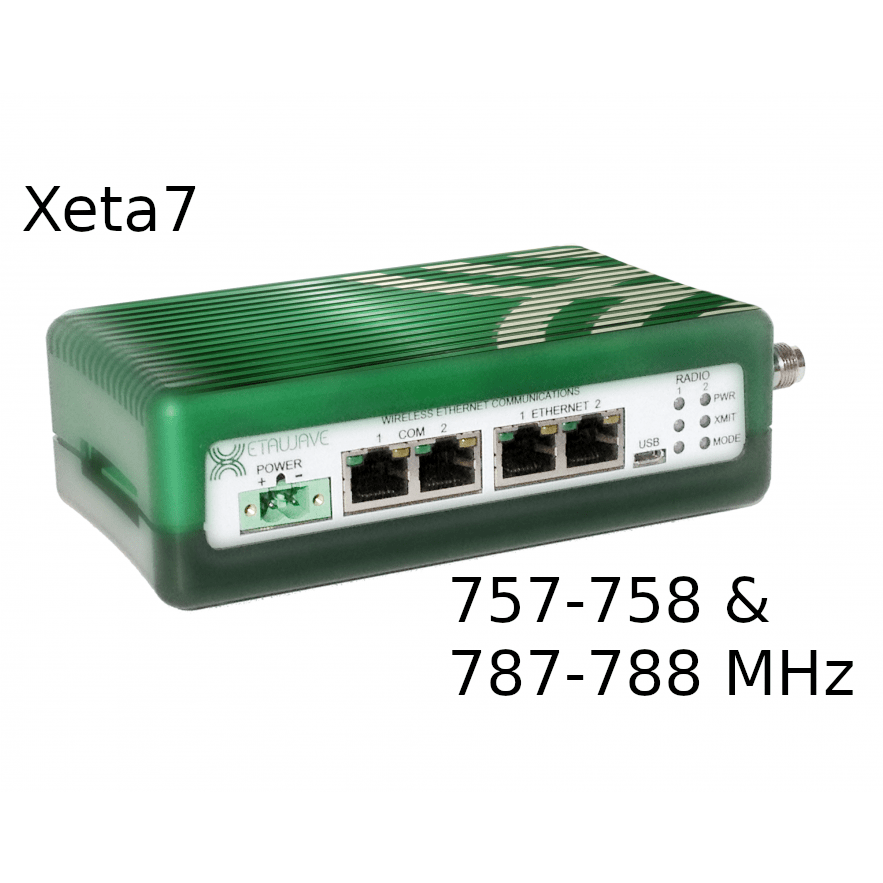

Xeta7 Series UHF Ethernet Radio

SKU: YX7000L, YX7007L Category:


The Xeta7 family of radios is capable of operating in the Upper 700 MHz A Block (757-758 and 787-788 MHz). XetaWave enclosed radios offer 2 Ethernet ports as well as 2 Serial ports. Modulations up to 57kbps¹ 32QAM provide some of the highest data rates available on a narrowband (12.5kHz) channel, and data rates of up to 1Mbps are available with a 250kHz channel. Unique to Xetawave, radios can use multiple modulation rates to create multipoint, multispeed networks where radio links may vary in distance and signal strength, allowing for the fastest possible speeds to each radio.

Several variations are available, including the dual radio module Xeta7x7, which allows for seamless repeaters, or dual independent radio networks. Enclosed radios are capable of up to 10W transmit power.

XetaWave’s 2nd generation -EL sofware platform is based on a Linux operating system, allowing for additional functionality compared to the first generation platform. VLANs, static routing, CSMA mesh mode, SNMP, and integrated advanced diagnostic and testing tools are all built into the latest platform.

¹Quoted data rates are radio level modulation rates. User data throughputs vary with application and radio settings. Contact us for more information on available application level throughputs.

Additional information

Frequency Range

757-758 and 787-788MHz

Output Power

50mW – 10W


70+ mi line of sight


MSK, QPSK, 8PSK, 16QAM, 32QAM (64QAM in development)

RF Data Rate

10-57 kbps (12.5kHz), 19-87 kbps (25kHz), 39-175kbps (50kHz), 76-400 kbps (100kHz), 153-800 kbps (200kHz), 194-1000 kbps (250kHz)

Channel Size

12.5 / 25 / 50 / 100 / 200 / 250 kHz

Frequency Stability

1.0 ppm

Duty Cycle


Output Impedance

50 Ohms


up to -113 dBm depending on modulation (see data sheet)

Error Detection

Up to 32-bit CRC, retransmit on error


AES 128/256

Data Interfaces

2x 10/100 Ethernet, 2x RS232/422/485 Serial

Data Connector

4x RJ45 (adapters available for serial connections)

Serial Interface Speed

Up to 230.4 kbps

Operating Voltage

12-32 VDC with reverse polarity protection to 32 VDC

Transmit Current

up to 2.6A @ 12V

RF Connector

TNC female

Dimensions (LxWxH)

Enclosed: 6.625" x 3.45" x 1.835", Module 2.0" x 1.4" x 0.37"


Enclosed: 1.54 lbs (0.70 kg), Module: 30g

Operating Temperature Range

-40C to +75C


Xeta7-EL (MPN: XETA7-22MMLFB )

  • Single RF Module
  • Enclosed Ethernet (2 ports) and Serial (2 ports)
  • Up to 10W output power

Xeta7x7-EL (MPN: XETA7X7-22MMLFB)

  • Dual RF Modules: Back-to-back repeaters, multi-network support
  • Enclosed Ethernet (2 ports) and Serial (2 ports)

Multi-Band Radios

  • Dual RF Modules, different frequency bands
  • Xeta7 radio can be combined with any other XetaWave radio (1, 2, 4, 9, 24)
  • Enclosed Ethernet (2 ports) and Serial (2 ports)


Contact us for more information on Board-Level radio modules for OEMs.

Xeta7 Datasheet

For the latest firmware, user guide, or other documentation, please contact us.
