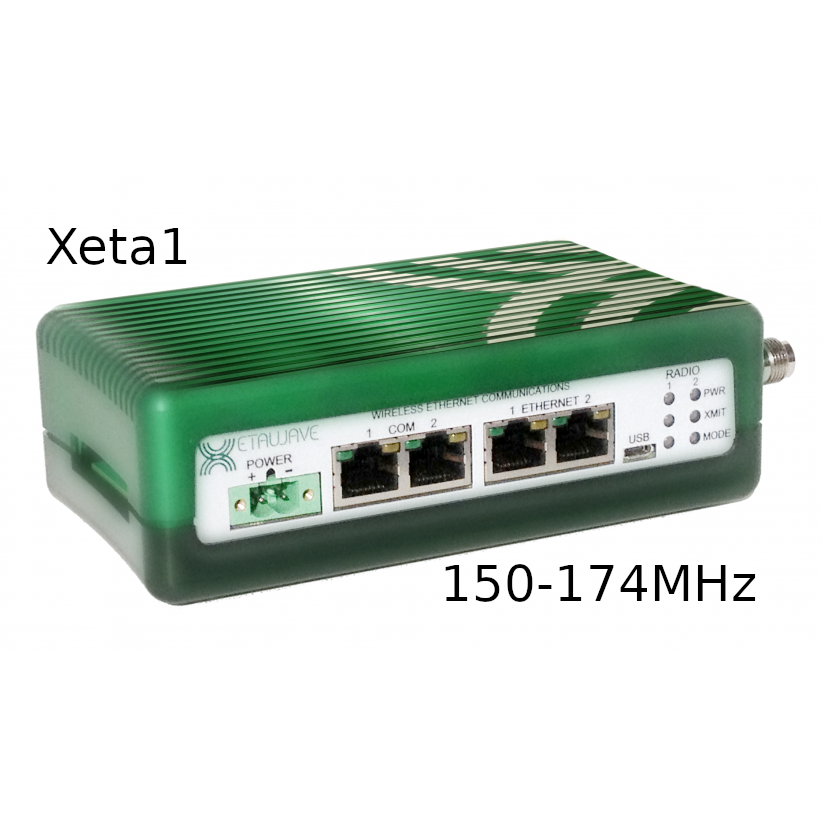

Xeta1-EL VHF Ethernet Radio

SKU: YX100x Category:

Description

The Xeta1 family of radios is capable of operating in the 150-174MHz licensed VHF band. Industry leading modulations up to 68kbps¹ 64QAM provide some of the highest data rates available on a narrowband (12.5kHz) channel. Unique to XetaWave, master radios can use multiple modulation rates to create multipoint, multispeed networks where radio links vary in distance and signal strength, allowing for the maximum speed to each radio.

XetaWave enclosed radios offer 2 Ethernet ports as well as 2 Serial ports (requires included adapter, or inexpensive custom cable). Several variations are available, including the dual radio module Xeta1x1, which allows for seamless back-to-back repeaters, or dual independent radios.

XetaWave’s 2nd generation -EL platform is based on a Linux operating system, allowing for additional functionality compared to the first generation platform. VLANs, static routing, CSMA mesh mode, SNMP and integrated advanced diagnostic and testing tools are all built into the latest platform.

¹Quoted data rates are radio level modulation rates. User data throughputs vary with application and radio settings. Contact us for more information on available application level throughputs.

Additional information

Frequency Range

150-173.4 MHz

Output Power

50-5000 mW

Range

70+ mi (with line of sight)

Modulation

MSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM

RF Data Rate

10 to 68 kbps

Channel Size

12.5 or 25 kHz (other channel sizes available where regulations allow)

Frequency Stability

1.0 ppm

Duty Cycle

Continuous

Output Impedance

50 Ohms

Sensitivity

up to -113 dBm depending on modulation (see data sheet)

Error Detection

Up to 32-bit CRC, retransmit on error

Encryption

AES 128/256

Data Interfaces

2x 10/100 Ethernet, 2x RS232/422/485 Serial

Data Connector

4x RJ45 (adapters available for serial connections)

Serial Interface Speed

Up to 230.4 kbps

Operating Voltage

10-32 VDC, reverse polarity protection up to 32VDC

Transmit Current

460mA @ 12V for 1W RF

RF Connector

TNC female

Dimensions (LxWxH)

Enclosed: 6.625" x 3.45" x 1.835"

Weight

1.54 lbs (0.70 kg)

Enclosed

Xeta1-EL

  • Single RF Module
  • Enclosed Ethernet (2 ports) and Serial (2 ports)

Xeta1x1-EL

  • Dual RF Modules: Back-to-back repeaters, multi-network support
  • Enclosed Ethernet (2 ports) and Serial (2 ports)

Multi-Band Radios

  • Dual RF Modules, different frequency bands
  • Xeta1 radio can be combined with any other XetaWave radio (2, 4, 7, 9, 24)
  • Enclosed Ethernet (2 ports) and Serial (2 ports)

Xeta1 100MHz DataSheet

For the latest firmware, user guide, or other documentation, please contact us.
