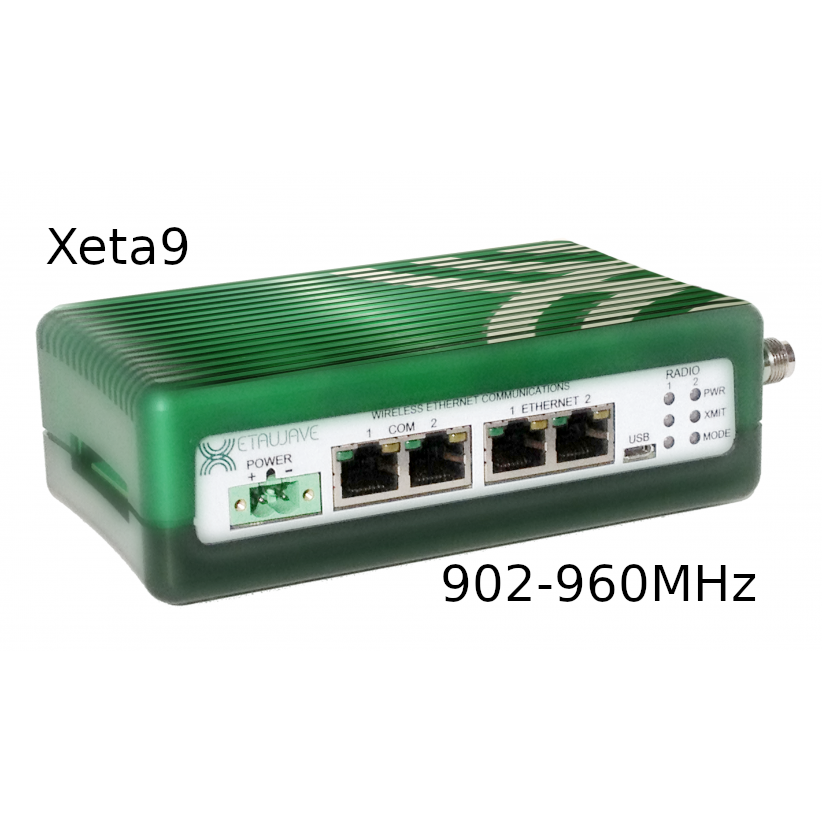

Xeta9 Series 900 MHz Ethernet Radio

SKU: YX900x Category:

Description

The Xeta9 family of radios is capable of operating in the 902-928MHz unlicensed ISM band as well as the licensed 928-960 MHz band. Unlicensed FHSS and DTS modes allow for data rates up to 4.4Mbps¹. For licensed mode, modulations up to 57kbps¹ 32QAM provide some of the highest data rates available on a narrowband (12.5kHz) channel.

XetaWave’s Software Defined Radio (SDR) technology allows for a wide range of modulations and channel sizes in the 900 MHz unlicensed ISM band. Radios can be programmed for high speeds for short or low noise links, or lower speeds for long links or where noise levels are high. Unique to XetaWave, master radios can use multiple modulation rates to create multipoint, multispeed networks where radio links vary in distance and signal strength, allowing for the maximum speed to each radio.

XetaWave enclosed radios offer 2 Ethernet ports as well as 2 Serial ports (requires included adapter, or inexpensive custom cable). Several variations are available, including the dual radio module Xeta9x9, which allows for seamless repeaters, or dual independent radio networks. Board level options are also available for integration by OEMs.

XetaWave’s 1st generation -E platform allows for simple wireless bridging of Ethernet/IP networks, serial, and Serial-over-IP networks. Simple to setup and get started, this platform is ideal for many wireless networks.

XetaWave’s 2nd generation -EL platform is based on a Linux operating system, allowing for additional functionality compared to the first generation platform. VLANs, static routing, CSMA mesh mode, SNMP, and integrated advanced diagnostic and testing tools are all built into the latest platform.

¹Quoted data rates are radio level modulation rates. User data throughputs vary with application and radio settings. Contact us for more information on available application level throughputs.

Additional information

Frequency Range

902-928 MHz (ISM FHSS & DTS), 928-960 MHz (MAS)

Output Power

50mW to 3W, 1W limit in ISM modes

Range

70+ mi (with line of sight)

Modulation

MSK, 2FSK, 4FSK, BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM

RF Data Rate

57 kbps to 4419 kbps (ISM), 10 to 210 kbps (MAS)

Channel Size

ISM: 76.45 kHz to 1.2 MHz, MAS: 12.5, 25, 50 kHz

Frequency Stability

1.0 ppm

Duty Cycle

Continuous

Output Impedance

50 Ohms

Sensitivity

ISM: up to -110 dBm, MAS: up to -115 dBm depending on modulation (see data sheet)

Error Detection

Up to 32-bit CRC, retransmit on error

Encryption

AES 128/256

Data Interfaces

2x 10/100 Ethernet, 2x RS232/422/485 Serial

Data Connector

4x RJ45 (adapters available for serial connections)

Serial Interface Speed

Up to 230.4 kbps

Operating Voltage

10-32 VDC, reverse polarity protection up to 32VDC

Transmit Current

335mA @ 12V for 1W RF

RF Connector

TNC female

Dimensions (LxWxH)

Enclosed: 6.625" x 3.45" x 1.835", Module 2.0" x 1.4" x 0.37"

Weight

With enclosure: 1.54 lbs (0.70 kg), Module only: 24g

Xeta4 radios are available with a uTasker (-E models) or Linux platform (-EL) OS. Contact us for information on the differences.

Enclosed

Xeta9-E, Xeta9-EL

  • Single RF Module
  • Enclosed Ethernet (2 ports) and Serial (2 ports)
  • Up to 3W output power (MAS mode, 1W limit for ISM)

Xeta9x9-E, Xeta9x9-EL

  • Dual RF Modules: Back-to-back repeaters, multi-network support
  • Enclosed Ethernet (2 ports) and Serial (2 ports)

Multi-Band Radios

  • Dual RF Modules, different frequency bands
  • Xeta4 radio can be combined with any other XetaWave radio (1, 2, 4, 7, 24)
  • Enclosed Ethernet (2 ports) and Serial (2 ports)

Board-Level

Contact us for more information on Board-Level Linux platform OEM radios.

Xeta9 Series Datasheet

For the latest firmware, user guide, or other documentation, please contact us.
